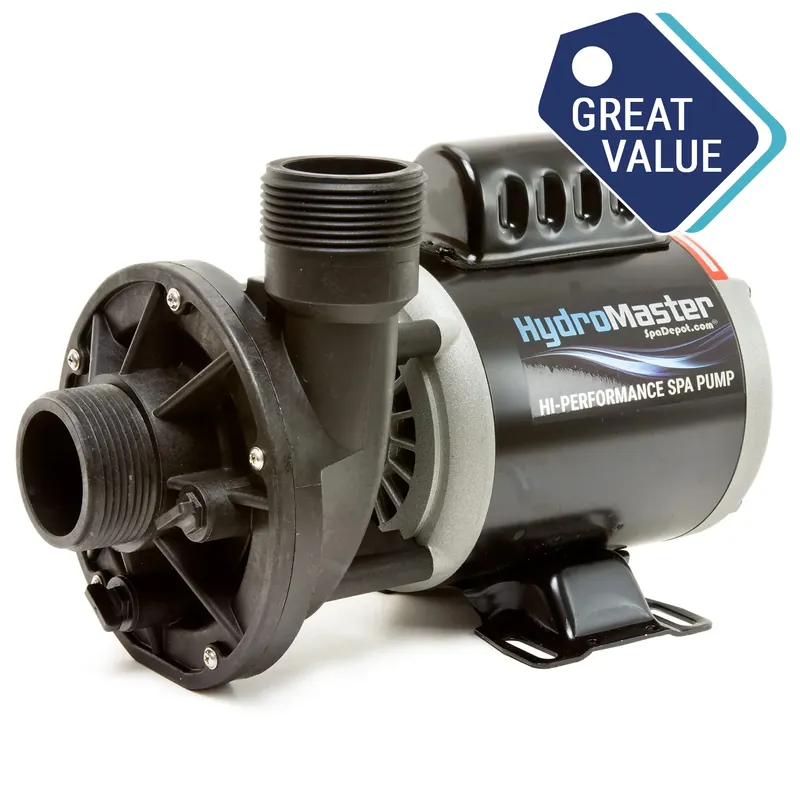

Time-Limited HydroMaster High Flow 50-GPM Spa Circulation Pump 1.5″ MBT – 120V/240V

HydroMaster High Flow Spa Circulation pump is a durable replacement for Waterway Iron Might, AquaFlow Circ-Master, & others.

• 24H Continuous Operation
• Discharge may be rotated
• Configurable Voltage

Product notes: Factory set 240V; easily re-configured for 120V. Spa circ pump flow rate, in Gallons Per Minute (GPM), is most accurately rated at 6′ of head.

Pump Wiring & Voltage Setup Instructions

Details

Type: High Flow

Flow Rate @ 6′ Head: 50 GPM

Voltage: 120V or 240V configurable

Horsepower: ¹⁄₁₅ HP

Plumbing: 1.5” MBT (2.375” O.D. pump threads)

Waterway Cross Reference: 3410020-1E, 3410030-1E, CP181N22A, CP181N11A

Aqua Flo Cross Reference: 02093012-2510, 02093000-2010, 02093695-2, 02410512-2, 02093001-2010

Other Cross Reference: 1-00-0053, 1-00-0218, 1000218, 1014032, 1030010, 1030011, 1030056, 1030057, 1030125, 1070022, 10-0265-A, 10-0265-4A3-K, 14154, 34-402-1140, 34-343-1020, 48WTC0153C-I, 6500-904, 993-0380A-A6-S, 993-0265A-L48-S, 993-0265A-L48, 993-0265A-A48, A1MB HV, PUULC02513822OSI

Certification: UL Recognized

Limited Manufacturer’s Warranty: 1-Year
