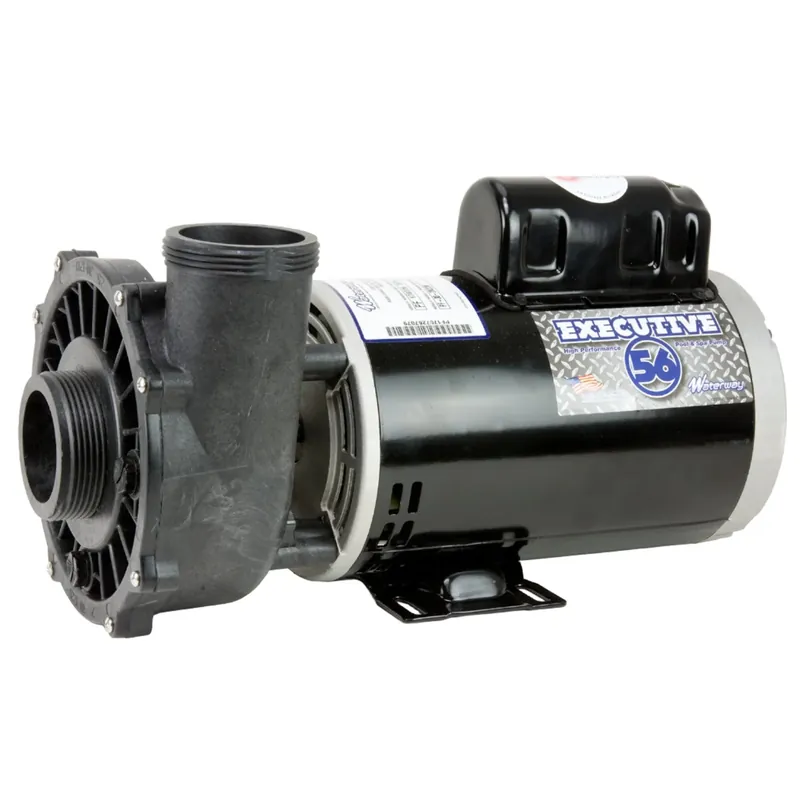

Time-Limited 5 HP Waterway Executive Spa Pump: 2″ in/out 240V

Durable Waterway Executive 56 Spa Pumps are simple to install and provide years of trouble-free use. Because of our huge buying power, you’ll pay less for a complete new hot tub pump (motor & wet end) than some others charge for just a replacement motor.

• 2″ Side discharge
• 2-Speed

Product Notes: 220 – 240V. 2-speed; easily configured for 1-speed. Waterway uses various motor manufacturers, so capacitor location may be external or internal. Order new pump unions if needed. Some brands (such as Hayward, Jacuzzi or Sta-Rite) may use non-standard fittings with different dimensions.

Pump Selection & Installation Guide

Details

Voltage: 220-240V

Speed: 2-speed: 3450 RPM high/1725 RPM low

Horsepower: 5 HP

Amperage: 16.4A high/4.8A low

Gallons Per Minute: 260 GPM (high speed)

Frame Size: 56 Frame

Intake: 2” plumbing (3” O.D. pump threads)

Discharge: 2” plumbing (3” O.D. pump threads)

Discharge Type: Side

Wet End Discharge Orientation: Top (can easily be rotated)

Wet End Drain: Tapped & threaded for 3 plugs (included) – One open port, (2) knockouts

Overall Length: 17½”

Waterway Cross Reference: 3722021-1D, PF-40-2N22M, PF-50-2N22C, PF-50-1N22C, 3722021-0T7GDY

Motor Cross Reference: RB818, B236, 5KCP49ZN9315X, TT506, MGT-60-5137, R63MWENB-4728

Certification: UL Recognized

Limited Manufacturer’s Warranty: 1-Year
