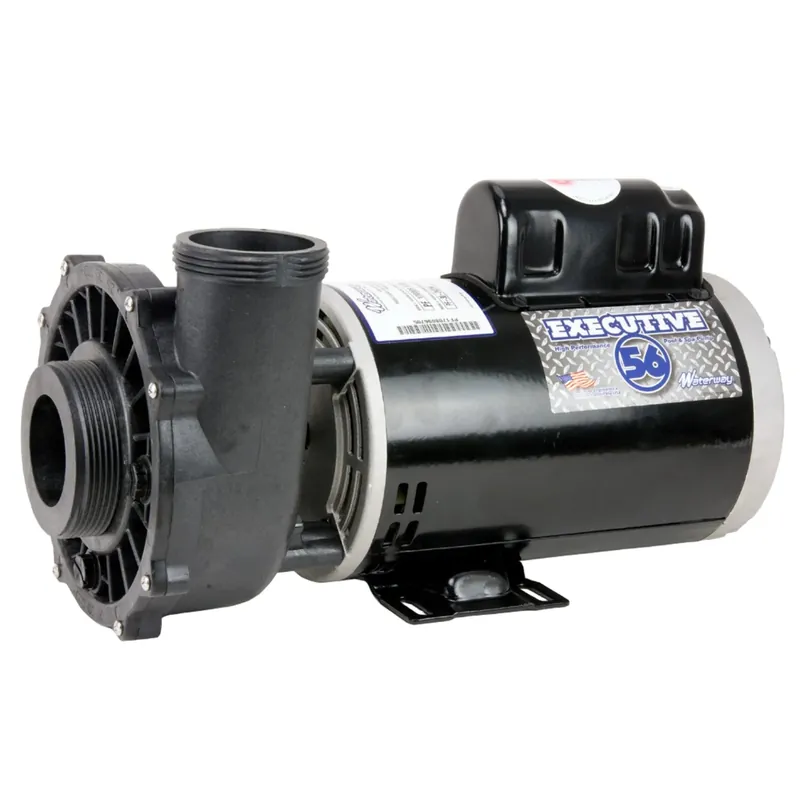

In Demand 4 HP Waterway Executive Spa Pump: 2.5″ in/2.0″ out 240V

Durable Waterway Executive 56 Spa Pumps are simple to install and provide years of trouble-free use. Because of our huge buying power, you’ll pay less for a complete new hot tub pump (motor & wet end) than some others charge for just a replacement motor.

• 2″ Side discharge, 2½” suction
• 2-Speed

Product Notes: 220 – 240V. 2-speed; easily configured for 1-speed. Includes 8′ AMP 14/4 cord. Waterway uses various motor manufacturers, so capacitor location may be external or internal. Order new pump unions if needed. Some brands (such as Hayward, Jacuzzi or Sta-Rite) may use non-standard fittings with different dimensions.

Pump Selection & Installation Guide

Details

Voltage: 220-240V

Speed: 2-speed: 3450 RPM high/1725 RPM low

Horsepower: 4 HP

Amperage: 12A high/4.4A low

Gallons Per Minute: 240 GPM (high speed)

Frame Size: 56 Frame

Intake: 2.5” plumbing (3⅝” O.D. pump threads)

Discharge: 2” plumbing (3” O.D. pump threads)

Discharge Type: Side

Wet End Discharge Orientation: Top (can easily be rotated)

Wet End Drain: Tapped & threaded for 3 plugs (included) – One open port, (2) knockouts

Overall Length: 16¾”

Waterway Cross Reference: 3721621-13, 3721621-0306, 3721621-0385V, 3721621-0385B, 3E21821-6310, ME-40226-25, PF-30-2N22M

Motor Cross Reference: RB817, B235, 5KCP49UN9314X

Certification: UL Recognized

Limited Manufacturer’s Warranty: 1-Year
