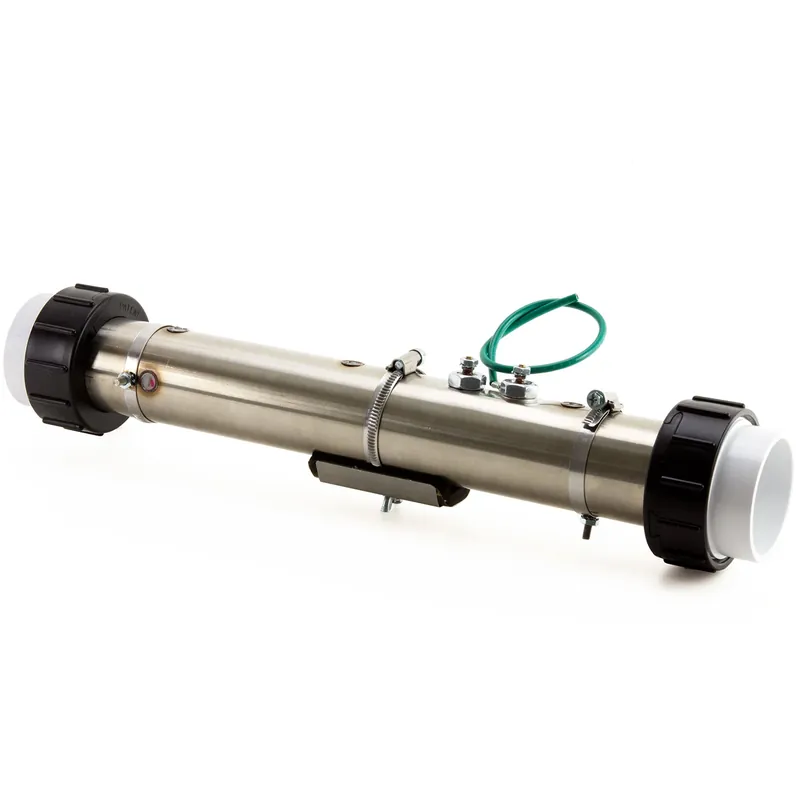

Hassle-Free Returns VersaTherm Universal Spa Heater Assembly ~ 4.0kW@240V (1.0kW@120V) Incoloy

Our VersaTherm Universal Replacement Hot Tub Heater Assembly has the first adaptable heater manifold. Movable mounting studs, multi-positional external thermowell, and (5) pressure tap locations assure fit and proper operation for super easy installation. No more guesswork or retrofit headaches! You cannot buy a better spa heater at any price.

• 240V/120V – 4000/1000 Watt – Incoloy Element
• Movable Studs & dual capacity Thermowell
• (5) Sensor Taps with removable plugs
• 2″ Slip Socket tailpieces

Product Notes: Always use two wrenches when making electrical connection to heater element terminals, to avoid damage to epoxy post seal. Tighten top nut, while holding bottom terminal nut (as illustrated). 1-year warranty. See cross ref. guide below.

Details

Length: 15” Stainless Steel Tube (not including unions)

Connection: 2” (Easily Convertible to 1½” Plumbing)

Voltage: 240V/120V

Wattage: 4kW @ 240 – 1kW @ 120V

Unions: (2) 2” Split Nuts, (2) Gaskets and (2) Tailpieces included

Pressure Taps:(5) Flush Mount w/Plugs (removable with screwdriver)

Thermowell Housing: 360° Adjustable or Removable, Dual Capacity

Ground Wire: Included

Replacement Element:BX5000 Flow-Thru Spa Heater Element

Replaces Part Numbers: View Spa Heater Cross Reference Guide

Warranty:Standard Incoloy – 1 year
