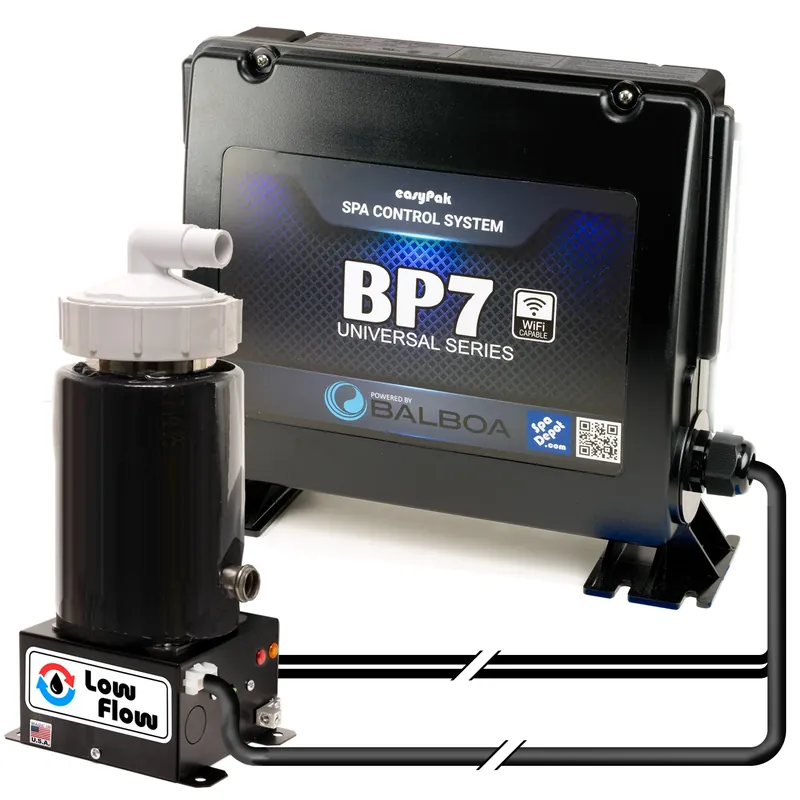

easyPak Powered by Balboa BP7 Pre-Configured Spa Control: Low Flow HydroQuip Heater Limited Time

Great full-featured replacement control system for Hot Spring, Tiger River, Jacuzzi, Sundance, Dimension One, & other spas using continuously circulating, low flow heating. When paired with Balboa® SpaTouch or TP series keypads, replaces most 1 to 4 pump systems.

Included:

• Pre-Configured Control System
• Remote Low Flow Titanium Heater w/ 48″ Cords – Wattage Choice:
• 5.5kW @240V (1.375kW @120V)
• 4.0kW @240V (1.0kW @120V)
• Hose Clamps & 1″ x ¾” Tubing Adapter Kit
• Detailed Installation Guide
• Exclusive 3-Year Warranty

Heater/Circulation Pump Info: Control system heater is designed for use with a small continuous circ pump (¾” or 1″ ID hose) delivering at least 10 GPM flow rate @ 6′ head. Laing E5, E3, and E1 circ pumps have inadequate flow rates for this high-efficiency heater.

We developed the ideal circ pump for this spa pack. Save money with our Add to Order Bundle Deal & get the correct cord for free!

Supported Circuits: Jet Pump 1, Jet Pump 2, Jet Pump 3, Blower or Jet Pump 4, Continuous Circulating Pump, Ozone, Light, A/V (stereo)

Keypad Options: Balboa TP200, TP500, TP600, TP700, SpaTouch Mini, & SpaTouch 3 (add-on pricing, as applicable)

Optional Upgrades:

• Grundfos Endurance Circ Pump
• ControlMySpa – Manage hot tub remotely with Balboa CMS app
• High-Output Ozonator Kit
• Starburst 36 LED Vivid Color Light

Product notes: 120V / 240V (convertible). Suitable keypad required to control functions (see above). Required circ pump must accept ¾” or 1″ ID hose, with flow rate at least 10GPM @ 6′ of Head. Must be wired by a qualified electrician to an approved, grounded, GFCI-protected service, per code requirements. 240V systems require GFCI disconnect box. Obsolete 3-wire 240V service must be rewired to 4-conductor. Jacuzzi® and Sundance® are registered trademarks of Jacuzzi Brands, LLC.

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Details

Jet Pump 1 Circuit: 120V or 240V – 12A max – 2Speed

Jet Pump 2 Circuit: 120V or 240V – 12A max – Single or 2 Speed

Jet Pump 3 Circuit: 120V or 240V – 12A max – Single Speed

Blower/Jet Pump 4 Circuit: 120V or 240V – 12A max – Single Speed

Heater: ¾” Low Flow (Easily adapts to 1″ with included Tubing Reducers)

Continuous Circulating Pump Circuit: 120V or 240V – 4A max – Low Flow

Ozone Circuit: 120V or 240V – 0.5A max (Ozone & Circ Pump Circuit voltage must match, if both are present)

Light Circuit: 12V – 2A max (Harness available below)

A/V (Stereo) Circuit: 120V or 240V – 2A max

Communications Ports: Keypad, Auxiliary Keypad, Control My Spa

Overheat/Freeze Protection: Manual reset

Certification: UL Recognized

Limited Warranty: 3-year

Alternative To: IQ2020, IQ2000, Water Pro, & More
