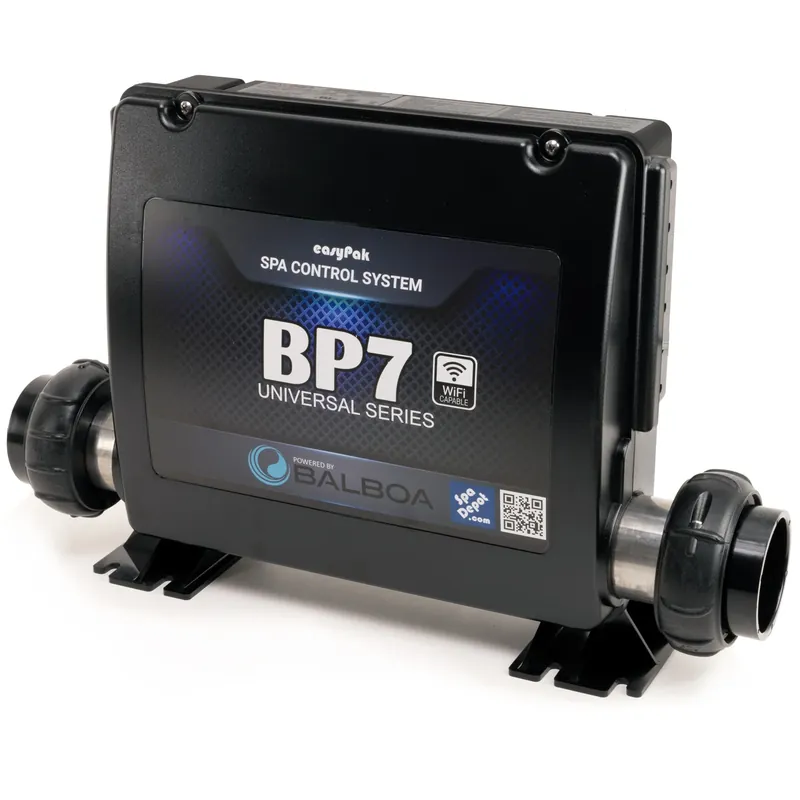

easyPak Powered by Balboa BP7 Pre-Configured Spa Control Deal

Universal spa control replaces most 1 to 4 pump systems – any brand. When paired with SpaTouch or TP series keypads, it’s a perfect upgrade for Balboa® VS, BP, & EL packs. Advanced M7 dual-sensor technology allows heater plumbing to pump intake or discharge.

Included:

• Pre-Configured Control System
• Integrated Titanium Heater – Wattage Choice
• 5.5kW @240V (1.375kW @120V)
• 4.0kW @240V (1.0kW @120V)
• Heater Split Nuts, Tailpieces and Gaskets
• Detailed Installation Guide
• Exclusive 3-Year Warranty

Supported Circuits: Jet Pump 1, Jet Pump 2, Jet Pump 3, Blower or Jet Pump 4, Continuous Circulating Pump, Ozone, Light, A/V (stereo)

Keypad Options: Balboa TP200, TP500, TP600, TP700, SpaTouch Mini, & SpaTouch 3 (add-on pricing, as applicable)

Optional Upgrades:

• ControlMySpa – Manage hot tub remotely with Balboa CMS app
• High-Output Ozonator Kit
• Starburst 36 LED Vivid Color Light

Product notes: 120V / 240V (convertible). Suitable keypad required to control functions (see above). If present, circ pump must have 1½” plumbing & produce at least 23GPM. Must be wired by a qualified electrician to an approved, grounded, GFCI-protected service, per code requirements. 240V systems require GFCI disconnect box. Obsolete 3-wire 240V service must be rewired to 4-conductor.

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Balboa BP7 Series Installation/Operation Manual

Details

Jet Pump 1 Circuit: 120V or 240V – 12A max – 2Speed

Jet Pump 2 Circuit: 120V or 240V – 12A max – Single or 2 Speed

Jet Pump 3 Circuit: 120V or 240V – 12A max – Single Speed

Blower/Jet Pump 4 Circuit: 120V or 240V – 12A max – Single Speed

Heater: 2″ High Flow (Easily convert to 1½” with Reducer Bushings)

Continuous Circulating Pump Circuit: 120V or 240V – 4A max – High Flow

Ozone Circuit: 120V or 240V – 0.5A max (Ozone & Circ Pump Circuit voltage must match, if both are present)

Light Circuit: 12V – 2A max (Harness available below)

A/V (Stereo) Circuit: 120V or 240V – 2A max

Communications Ports: Keypad, Auxiliary Keypad, Control My Spa

Overheat/Freeze Protection: Automatic

Certification: UL Recognized

Limited Warranty: 3-year

Alternative To: VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS511Z, VS511SZ, VS520SZ, BP501G1, BP501G2, BP501G3, 2000LE, EL8000, EL2000, EL2001, EL84P, EP6551, Gecko M-Class, X-Class, S-Class Systems, Water Pro, & More
