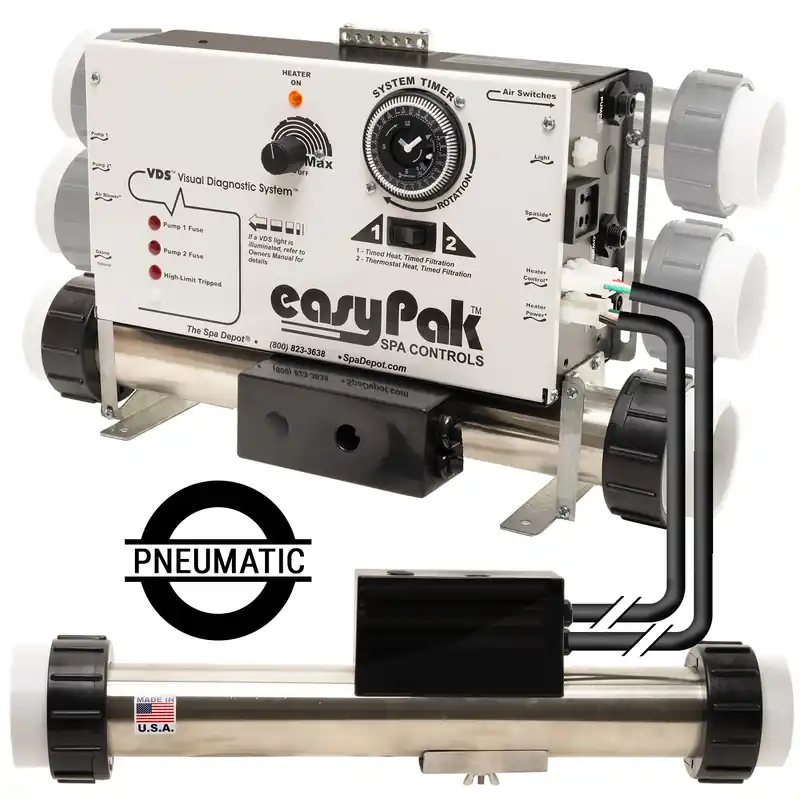

easyPak Air-Button Pre-Configured Spa Control: Anywhere Heater Holiday Sale

Compact pneumatic air control system replaces most 1 to 2 pump systems. Will also accommodate an air blower. Positional/remote heater suits many plumbing configurations, even remote mount.

Easy-to-use VDS™ Visual Diagnostic System makes future troubleshooting a breeze. Labeled indicator lights illuminate when an malfunction occurs, targeting any issues with components & avoiding time-consuming repairs or costly service calls.

Included:

• Pre-Configured Control System
• Multi-Position Slide Heater – Wattage Choice
• 5.5kW @240V (operates at 1.375kW @120V)
• 4.0kW @240V (operates at 1.0kW @120V)
• Heater Split Nuts, Tailpieces and Gaskets
• Detailed Installation Guide
• Exclusive 3-Year Warranty

Supported Circuits: Pump 1, Pump 2, Blower, Ozonator, Light

Optional Upgrades:

• Keypad with Thermostat – Function controls right at your fingertips
• Air Button & Hose Kit
• High-Output Ozonator Kit
• Starburst 36 LED Vivid Color Light

Product notes: 120V / 240V (convertible). Must be wired by a qualified electrician to an approved, grounded, GFCI-protected service, per code requirements. 240V systems require GFCI disconnect box. Obsolete 3-wire 240V service must be rewired to 4-conductor.

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Operation Manual

Details

Jet Pump 1 Circuit: 120V or 240V – 13A max- Single or 2 Speed

Jet Pump 2 Circuit: 120V or 240V – 13A max – Single Speed

Blower Circuit: 120V or 240V – 8A max

Ozone Circuit: 120V or 240V – 2A max – (Must coincide w/ jet pump 1)

Light Circuit: 12V – 1A max – (harness available below)

24-Hour Timer: Multiple heat & filtration cycles

Mode Switch: Timed Heat/ Timed Filtration -OR- Thermostat Heat / Timed Filtration

Heater: 2″ High Flow (Easily convert to 1.5″ with Reducer Bushings)

Overheat/Freeze Protection: Automatic

Certification: UL Recognized

Limited Warranty: 3-year

Alternative To: CS6000, CS6008, CS6009, CS7000, Water Pro, & More
